APPLICATIONS

Cabe proposes a complete range of machines for the cutting of slots. Broaching, slotting and keyseating, the vast offer of specialized machines always helps find the right solution for all kinds of requests.

WATCH THE VIDEOS OF THE DIFFERENT APPLICATIONS
Helical slot realized with slotting machine ST4 CNC and ST5 CNC

HELICAL SLOTS

Helical slots obtained with the interpolation of 2 axes.

Suitable Machines:
ST4 CNC, ST5 CNC

Conical slots realized with slotting machines ST4 CNC and ST5 CNC

CONICAL SLOTS

Conical slots obtained with the interpolation of 2 axes.

Suitable Machines:
ST4 CNC, ST5 CNC

Maag Cutting with the slotting machines Cabe

MAAG CUTTING

Maag Cutting with the slotting machines.

Suitable Machines:
ST4 CNC, ST5 CNC

Blind slots realized with the slotting machines ST4 CNC and ST5 CNC

BLIND SLOTS

Blind slots without discharge hole and discharge inclinations of up to 45°

Suitable Machines:
ST4 CNC, ST5 CNC

Internal broaching realized with Cabe broaching machines

INTERNAL BROACHING

Piece realized with broaching machine.

Suitable Machines:
Broaching Maschines

Linear cutting realized with Cabe slotting and keyseating machines

LINEAR CUTTING

Linear cutting realized on a piece open on both sides.

Suitable Machines
Keyseating Machines, Slotting Machines

Multi-processing with slotting machines

MULTI-PROCESSING

Multi-processing realized on the same piece in a single working cycle.

Suitable Machines:
ST4 CNC, ST5 CNC

 square realized with slotting machine

SQUARE

Realization of a square with sides of relevant dimensions.

Suitable Machines:
ST4 CNC, ST5 CNC

Large size piece realized with Cabe Keyseating Machine

LARGE SIZES

Particularly large cutting realized in a piece with closed ends.

Suitable Machines:
ST4 CNC, ST5 CNC

Polygonal slots with Cabe Slotting Machine

POLYGONAL CUTTING

Poligonal cutting realized with the slotting machines ST4 CNC and ST5 CNC.

Suitable Machines:
ST4 CNC, ST5 CNC

External toothing with Cabe Slotting Machine

EXTERNAL TOOTHING

External toothing is obtainable with the slotting machines ST4 CNC e ST5 CNC.

Suitable Machines:
ST4 CNC, ST5 CNC

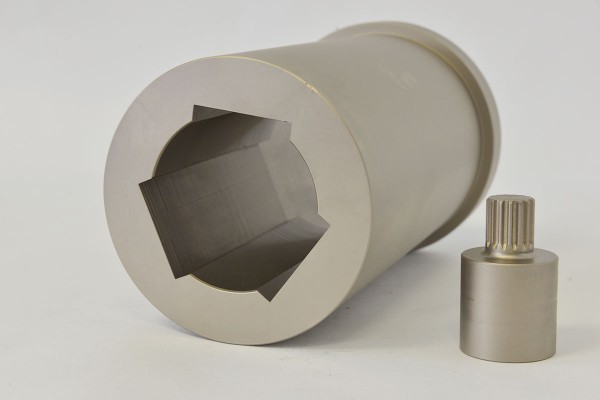

Trapezoidal cutting with Cabe Slotting machine

TRAPEZOIDAL CUTTING

Trapezoidal cutting realized with the slotting machines ST4 CNC e ST5 CNC.

Suitable Machines:
ST4 CNC, ST5 CNC
